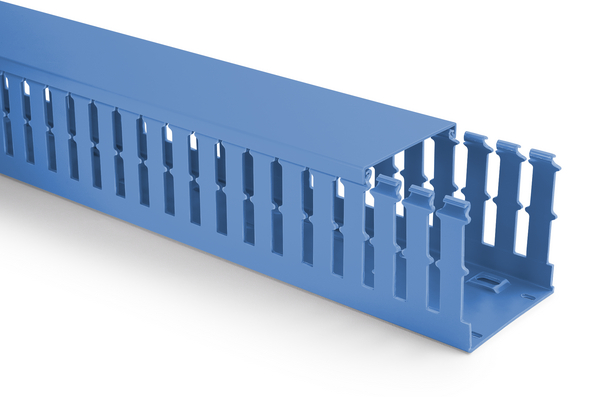

Wiring duct 40x40 mm, 2 m, PVC, blue
Art.-No. 181-10077 | HTWD-PWB-40X40-PVC-BU | Details

This product is not available anymore.

Blue colour to identify intrinsically safe wiring

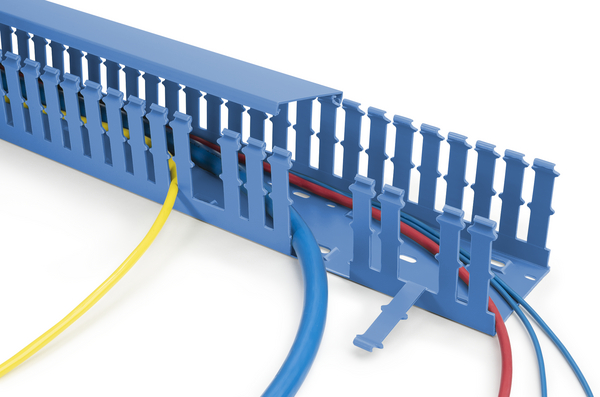

Wide slots suitable for large-diameter wires
Wide fingers provide additional wire support
Smooth, burr-free edges protect installers from injury and wires from damage
Fingers can be removed with no sharp edges at pre-notched snap-off points
Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
Raised mounting points for easily, quickly and securely fastening wire retainers and other accessories prior to cabling
Wire retainers and accessories leave no protruding parts below surface of duct

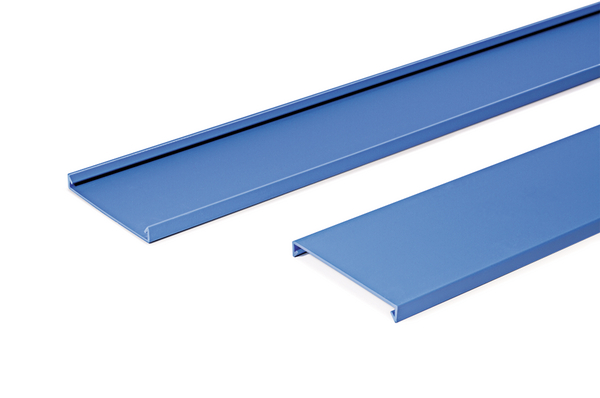

Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
Cover is flush with side of duct, allowing for tight, contiguous placement of ducts
Additional retainer nub on fingers to prevent cables from slipping

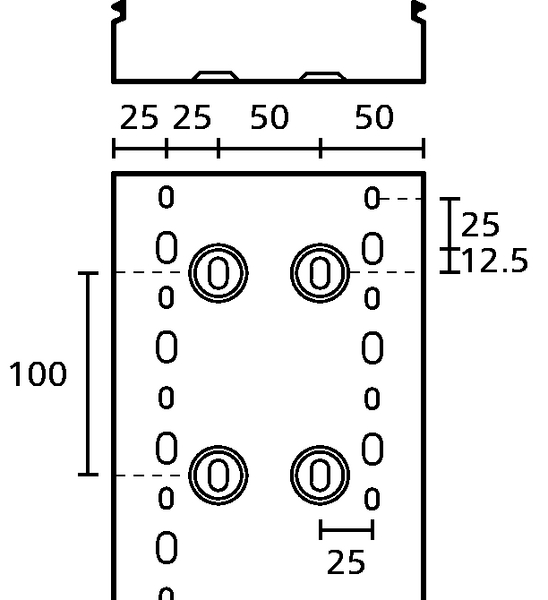

Base perforation according to DIN EN 50085

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	HelaDuct HTWD-PWB blue wiring ducts are used to identify intrinsically safe wiring, for instance in chemical plants or anywhere where explosive gases may be present.
Colour	Blue (BU)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	HTWD-PWB-40X40-PVC-BU
Pack Cont.	40m
Package Content packed in	Box
Product Family	HelaDuct HTWD-PWB Wiring Ducts for intrinsically safe wiring (metric sizes)
Product Group	Blue PVC Wiring Ducts
Short Description	Wiring duct 40x40 mm, 2 m, PVC, blue
Type	HTWD-PWB-40X40
