13/11/2024

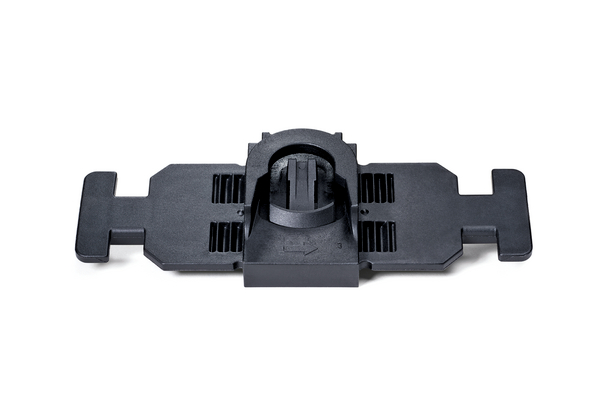

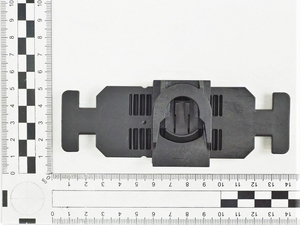

Cable tie mount for stud, Wmax=10.0mm, black, 50pcs.
Art.-No. 133-02637 | Fixing SFTP-PA6GF30-BK |  Details

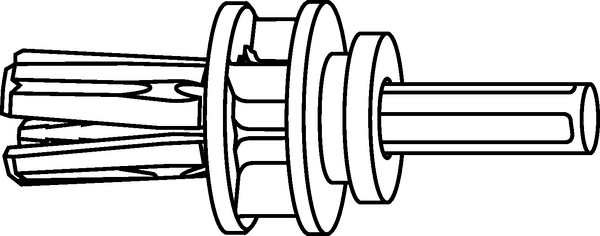

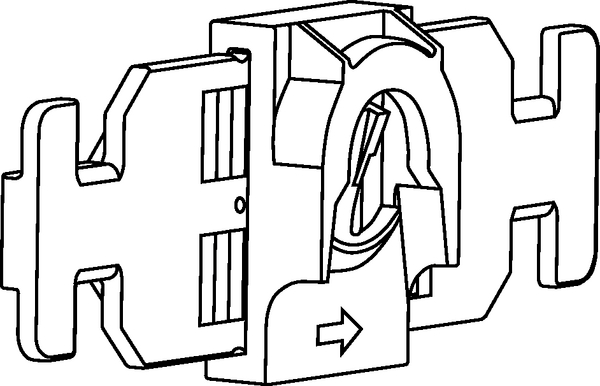

From left to right: Bold Nut HDBN16, SFTP-Spacer and at the front: SFTP-Fixing.

    • Guides bundles securely due to H-design
    • Useable with cable ties
    • Cable set can subsequently placed in correct position
    • Cable tie head can be moved after bundling
    • Fixing Plate can be used with the Spacer or the HDBN
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These Heavy Duty fixing plate are ideal for cables and wires in railway, truck and agricultural vehicle construction. Combined with the robust Rivet Mount it ensures a secure and firm hold. The central part can be moved in the areo of at least +/- 15.0 mm.
    Colour Black (BK)
    Material Polyamide 6, glass-fibre reinforced (PA6GF30)
    PART DESCRIPTION Fixing SFTP-PA6GF30-BK
    Pack Cont. 50pcs.

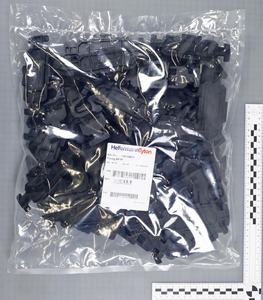

    Package Content packed in Bag
    Product Family SFTP-Series
    Product Group Fastening plate for Heavy Duty Applications
    Short Description Heavy Duty Application
    Type Fixing SFTP

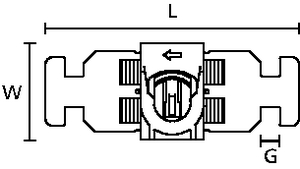

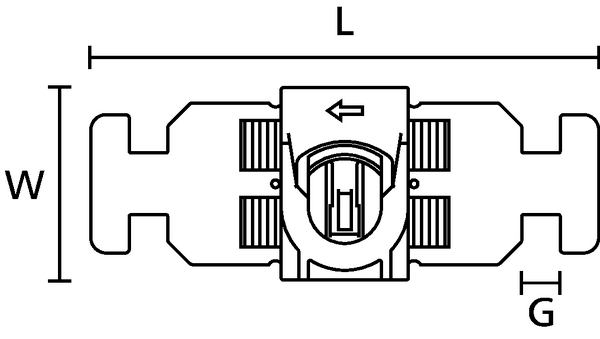

    Height (H) 19.7mm
    Length (L) 132.0mm
    Strap Width max. (G) 10.0mm
    Weight/Unit 0.038012kg
    Width (W) 50mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026575674
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 50
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00889m³
    Packaging 1 - Weight (kg) 1.929735kg
    Packaging 1 - Width (m) 0.45m
    Packaging 4 - Height (m) 0.964m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 4800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.925m³
    Packaging 4 - Weight (kg) 238.122kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
