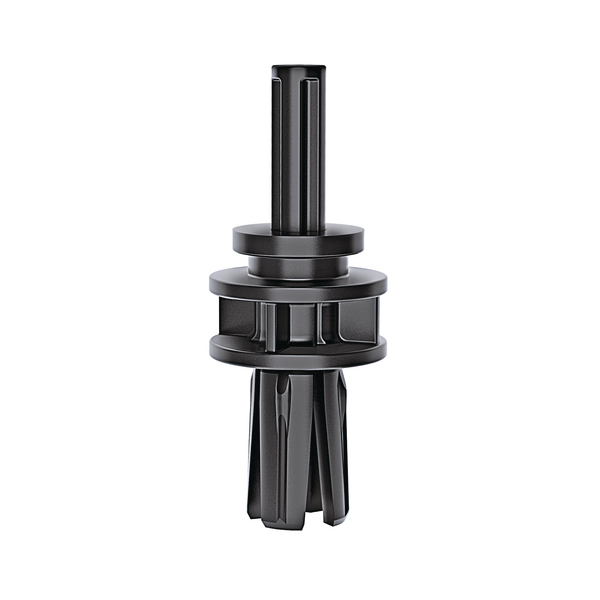

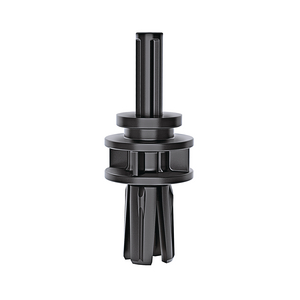

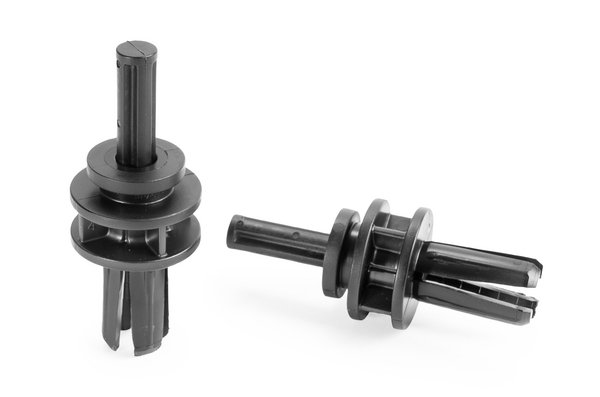

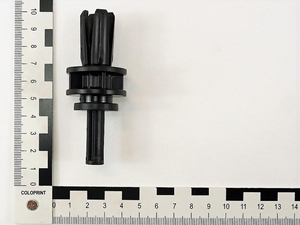

Cable tie mount for hole (round), ∅17.5 mm, black, 250pcs.
Art.-No. 133-02636 | Spacer SFTP-PA6GF30/PA66HIRHS-BK |  Details

From left to right: Bold Nut HDBN16, SFTP-Spacer and at the front: SFTP-Fixing.

    • Guides bundles securely due to H-design
    • Useable with cable ties
    • Cable set can subsequently placed in correct position
    • Cable tie head can be moved after bundling
    • Fixing Plate can be used with the Spacer or the HDBN
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application These Heavy Duty fixing plate are ideal for cables and wires in railway, truck and agricultural vehicle construction. Combined with the robust Rivet Mount it ensures a secure and firm hold. These Parts can not be mounted by hand,they can be assembled with a tool.
    Colour Black (BK)
    Material Polyamide 6, glass-fibre reinforced (PA6GF30), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION Spacer SFTP-PA6GF30/PA66HIRHS-BK
    Pack Cont. 250pcs.

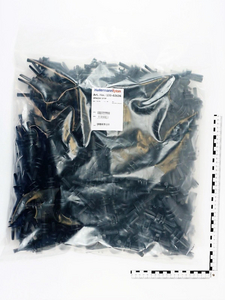

    Package Content packed in Bag
    Product Family SFTP-Series
    Product Group Rivet Mount for Heavy Duty Applications
    Short Description Rivet Mount
    Type Spacer SFTP
    Disc ∅ 33.0mm
    Height (H) 84.7mm
    Length (L) 33.0mm
    Weight/Unit 0.017776kg
    Width (W) 33mm
    for Hole ∅ (FH) 17.5 mm
    for Panel Thickness min - max 6 - 27.5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026575667
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 250
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.09m³
    Packaging 1 - Weight (kg) 4.526104kg
    Packaging 1 - Width (m) 0.6m
    Packaging 4 - Height (m) 0.964m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10500
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 0.925m³
    Packaging 4 - Weight (kg) 242.972kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
