Cable tie mount for stud, Wmax=7.7mm, ∅16.0 mm, black, 250pcs.
Art.-No. 156-02426 | FSFTPHDBN16-SET-PA6GF30/PA66HIRHS-BK Details

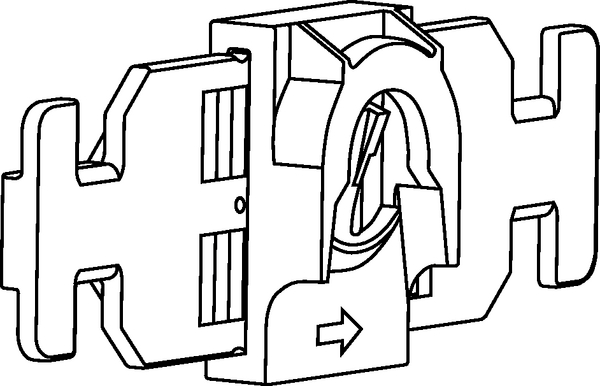

  • Bundles are securely fixed with cable ties due to H-design of plate

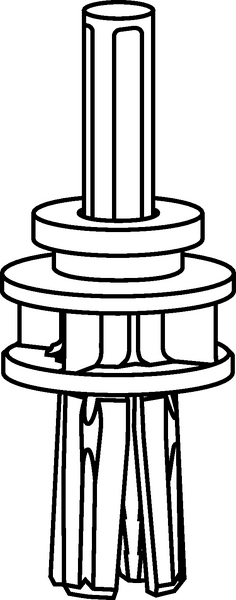

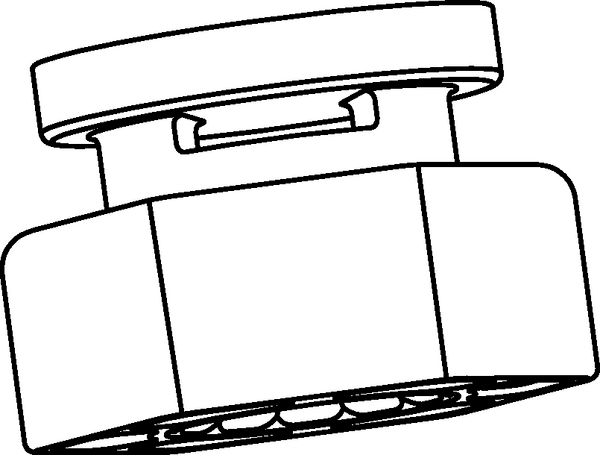

  • Plate can be fixed either with SFTP-Spacer for holes or bolt nut HDBN16 for M16 stud
  • Very robust and vibration resistant fixing method for lead frames

Request your individual offer now

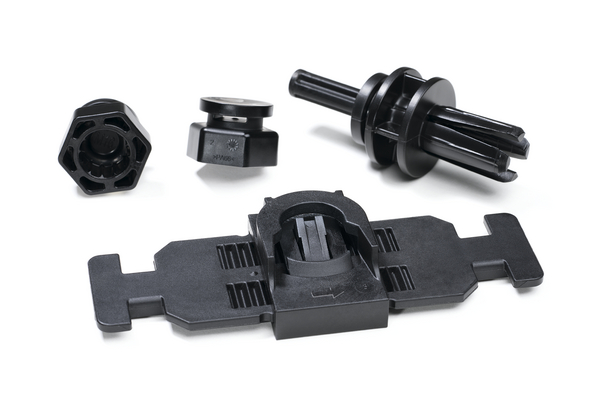

Application This SFTP-Heavy Duty fixing plate is used to run and fix cables to lead frames which can be found at railway, truck and agricultural vehicle construction. The cable harness is fixed with X120R tie onto the plate. The mounted plate can be fixed with the Rivet mount if a whole is valid at the frame. Or you can use the Bold Nut HDBN16 if a M16 stud is available. Both methods allow for a simple click and the harness is quick and vibration resistant applied to the lead frame.
Colour Black (BK)
Key product features vibration absorbing
Local order number FSFTPHDBN16/PAGF30%/PA66HIRHS
Material Polyamide 6, glass-fibre reinforced (PA6GF30), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION FSFTPHDBN16-SET-PA6GF30/PA66HIRHS-BK
Pack Cont. 250pcs.
Package Content packed in Bag
Product Family SFTP-Series
Product Group Fastening Plate and Bold Nut for Heavy Duty Applications
Type FSFTPHDBN16-SET

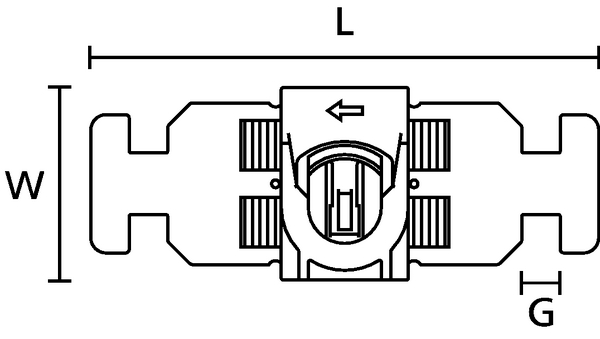

Height (H) 19.7mm
Length (L) 132.0mm
Strap Width max. (G) 7.7mm
Stud ∅ 16.0 mm
Weight/Unit 0.046kg
Width (W) 36.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026603278
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 250
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 12.15kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 5000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 264.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
