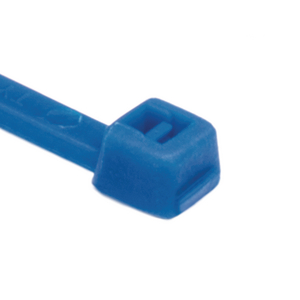

Cable tie inside serrated, 105x2.6mm, ∅2.0-24.0mm, blue, 100pcs.
Art.-No. 109-00147
| Q18R-PA66-BU
|
Details
This product is not available anymore.
Alternative product available
- Open lock head for quick and easy insertion
- Integrated pre-locking function
- More than 25 % faster in application
- Inside serration for a strong hold around bundles
- Easy application either manually or with a processing tool
Request your individual offer now
Request quote
More products in this product group:
| Application | 1. Open lock head for quick and easy insertion. 2. Two rails on the strap ensure a perfect guidance for the tracks in the head. 3. The locking device interacts safely with the serration of the cable tie. 4. The tracks prevent a deformation of the head under load. 5. The thin part of the cable tie can be simply placed into the open lock head. 6. The large ribbed tail allows a safe and ergonomic installation. 7. Integrated pre locking feature (starts with type Q30). |
| Colour | Blue (BU) |
| Identification Plate Position | none |
| Local order number | Q18R-PA66-BU-C1 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | Q18R-PA66-BU |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | Q-ties |
| Product Group | Cable Ties with open head |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie with open head 105x2.6 blue |
| Tie Closure | plastic pawl |
| Type | Q18R |
| Variant | Inside Serrated |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL OCD link | Link |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL-File Number | E65344 |
|
|
|
| Country of Origin | ZA |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026412757 |
| Packaging 1 - Height (m) | 0.008m |
| Packaging 1 - Length (m) | 0.205m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00023m³ |
| Packaging 1 - Weight (kg) | 0.028001kg |
| Packaging 1 - Width (m) | 0.14m |
| Packaging 2 - Height (m) | 0.175m |
| Packaging 2 - Length (m) | 0.295m |
| Packaging 2 - Qty | 4000 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0093m³ |
| Packaging 2 - Weight (kg) | 1.37004kg |
| Packaging 2 - Width (m) | 0.18m |
| Packaging 3 - Height (m) | 0.2m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 16000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0456m³ |
| Packaging 3 - Weight (kg) | 6.28016kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 320000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 146.6kg |
| Packaging 4 - Width (m) | 0.8m |
