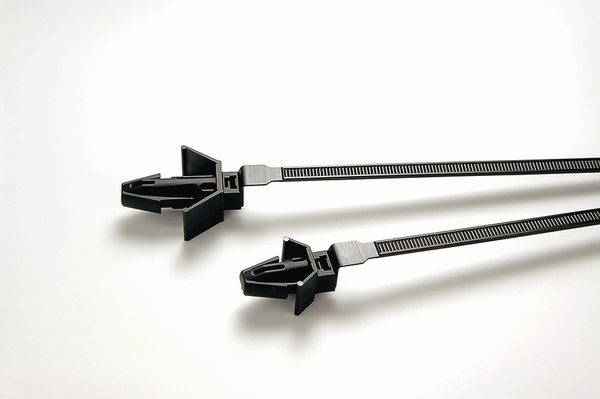

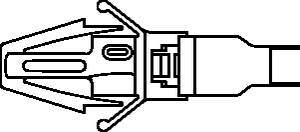

Fixing tie for hole (round), outside serrated, ∅1.0-45.0mm, black, 100pcs.
Art.-No. 126-00166 | OS230-PM9-PA66HSUV-BK | Details

Easy to assemble without the need for a tool
Cable tie head always situated in defined position
Arrowhead simply locks into place
Supporting legs provide a secure and firm fixing in areas where space is limited

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

1-piece fixing ties with arrowhead, with wings >

Base Data

Application	For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
Colour	Black (BK)
Fixation Method	arrowhead
Identification Plate Position	none
Local order number	OS230-PM9-HSW
Material	Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
PART DESCRIPTION	OS230-PM9-PA66HSUV-BK
Pack Cont.	100pcs.
Package Content packed in	Bag
Product Family	for round holes
Product Group	1-piece fixing ties with arrowhead, with wings
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	OS230-PM9

Product Dimensions

Bundle Diameter max (metric)	45.0mm
Bundle ∅	1.0-45.0mm
Bundle ∅ min.	1.0mm
Length (L)	229mm
Min.Tensile Strength	250N
Panel Thickness max.	7.0 – 14mm
Width (W)	5.0mm
for Hole ∅ (FH)	9.0 - 9.2 mm
for Panel Thickness min - max	7 - 14 mm
for Panel Thickness min - max	0.3 - 0.6 "

Downloads

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	JP
GTIN-13 / EAN	4944387103564

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
