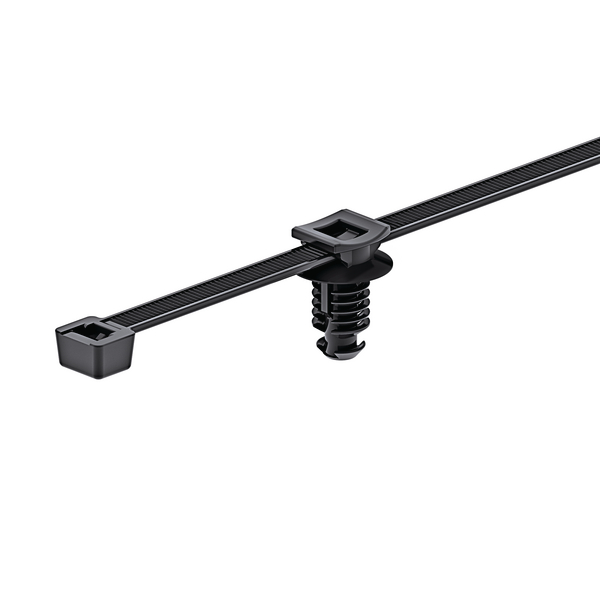

Fixing tie for hole (round), inside serrated, ∅8.0-80.0mm, black, 100pcs.
Art.-No. 156-00200
| T120IFT9-PA66HIR(S)-BK
|
Details

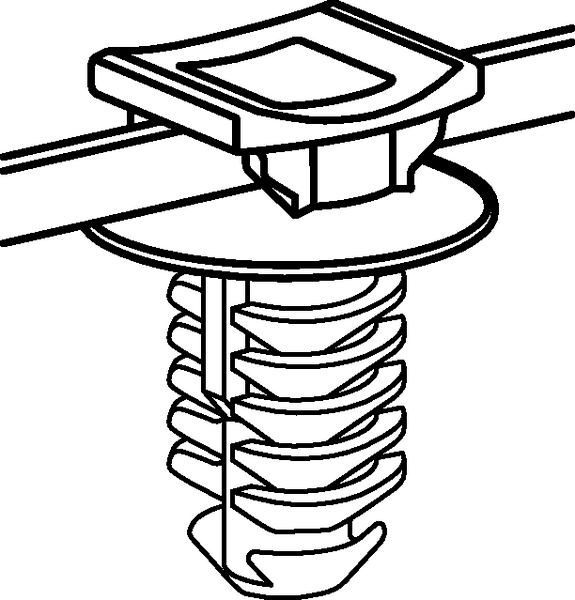

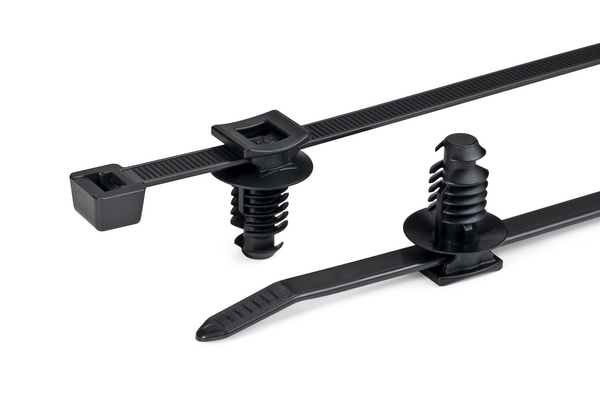

- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
T120L
111-12402| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Application Method | Can only be mounted with a tool, like a hammer. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Local order number | T120IFT9.SB3E |
| Material | Polyamide 6.6, high impact modified, scan black (PA66HIR(S)) |
| PART DESCRIPTION | T120IFT9-PA66HIR(S)-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | Carton |
| Product Family | Fir tree parts FT9 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Short Description | 2-Piece fixing tie 150x4.6 mm, with fir tree, PA66HS/PA66HIRHS, black |
| Tie Closure | plastic pawl |
| Type | T120IFT9 |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 80.0mm |
| Bundle ∅ | 8.0-80.0mm |
| Bundle ∅ min. | 8.0mm |
| Disc ∅ | 20.0mm |
| Height (H) | 1.6mm |
| Height (H2) | 18.8mm |
| Length (L) | 300mm |
| Length (L2) | 15.0mm |
| Min.Tensile Strength | 535N |
| Panel Thickness max. | 5.0 - 11. 0mm |
| Weight/Unit | 0.005478kg |
| Width (W) | 7.6mm |
| Width (W2) | 15.0mm |
| for Hole ∅ (FH) | 9.0 - 10.6 mm |
| for Panel Thickness min - max | 5 - 11 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660318337 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01109m³ |
| Packaging 1 - Weight (kg) | 0.569793kg |
| Packaging 1 - Width (m) | 0.42m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 1500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.366895kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 18000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 133.404kg |
| Packaging 4 - Width (m) | 0.8m |
