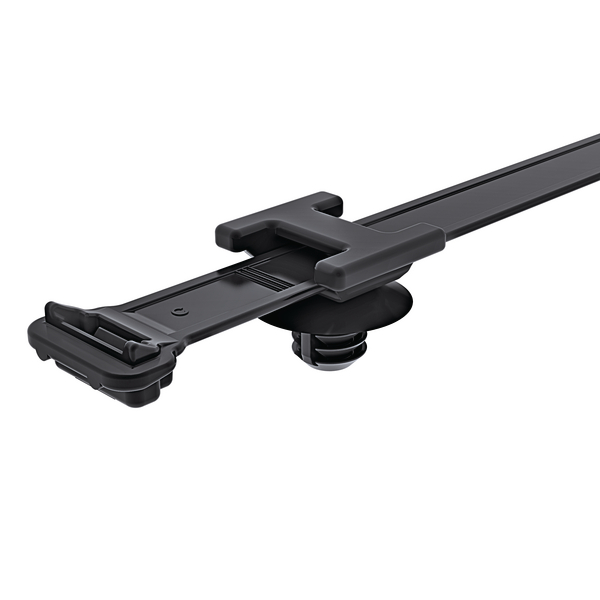

Fixing tie for hole (round), inside serrated, ∅57.0mm, black, 100pcs.
Art.-No. 156-00068
| WSSFT9A-PA66HIRHSUV-BK
|
Details

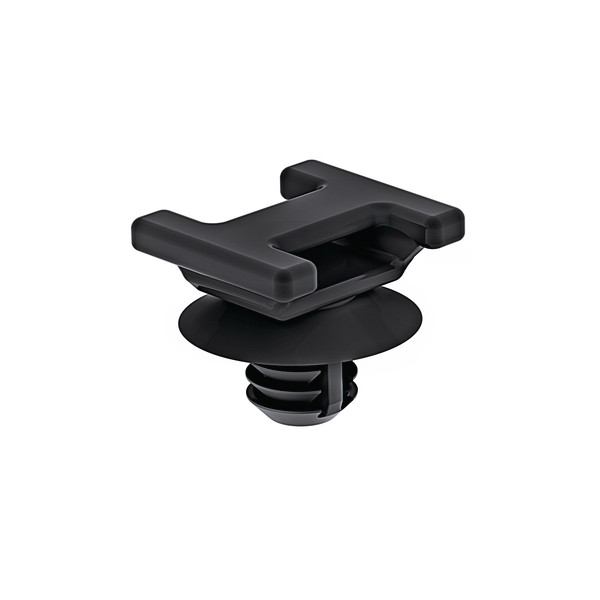

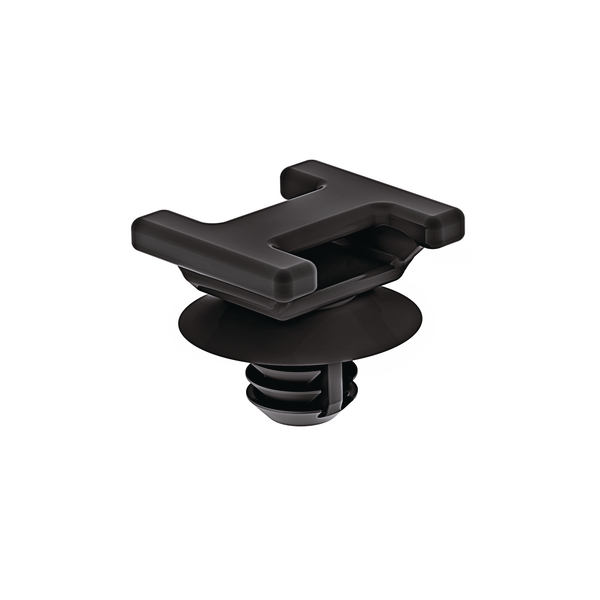

- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Cable Tie | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Foot Part | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Identification Plate Position | none |
| Local order number | WSSFT9A-HIRHSW-BK-C1 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| No. of sides for tie attachment | 2 |
| PART DESCRIPTION | WSSFT9A-PA66HIRHSUV-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | Fir tree parts FT9 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Short Description | 2-piece fixing ties with fir tree, with disc, for round holes 228x12.7 mm, high impact modified, heat and uv-stabilised, black |
| Tie Closure | plastic pawl |
| Type | WSSFT9A |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 57.0mm |
| Bundle ∅ | 57.0mm |
| Disc ∅ | 21.6mm |
| Height (H) | 19.10mm |
| Height (H2) | 9.0mm |
| Length (L) | 228.0mm |
| Min.Tensile Strength | 535N |
| Panel Thickness max. | 1.0 - 6.5mm |
| Weight/Unit | 0.006619kg |
| Width (W) | 12.7mm |
| Width (W2) | 13.0mm |
| for Hole ∅ (FH) | 8.7 - 9.2 mm |
| for Panel Thickness min - max | 1 - 6.5 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Nato number | 5975-12-411-5188 |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026414188 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.24m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00554m³ |
| Packaging 1 - Weight (kg) | 0.661901kg |
| Packaging 1 - Width (m) | 0.33m |
| Packaging 3 - Height (m) | 0.23799799999999996m |
| Packaging 3 - Length (m) | 0.618998m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0602m³ |
| Packaging 3 - Weight (kg) | 3.909505kg |
| Packaging 3 - Width (m) | 0.40894m |
| Packaging 4 - Height (m) | 1.096m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 4000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.052m³ |
| Packaging 4 - Weight (kg) | 52.276kg |
| Packaging 4 - Width (m) | 0.8m |
