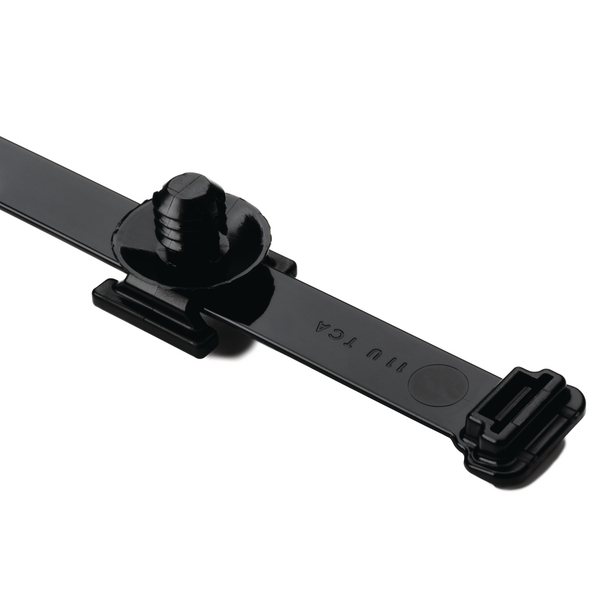

Fixing tie for hole (round), inside serrated, ∅9.5-82.5mm, black, 100pcs.
Art.-No. 156-00069
| WSIFT9A-PA66HIRHSUV-BK
|
Details
- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Local order number | WWSIFT9A-HIRHSW-BK-C1 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | WSIFT9A-PA66HIRHSUV-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Family | Fir tree parts FT9 |
| Product Group | 2-piece fixing ties with fir tree, with disc, for round holes |
| Tie Closure | plastic pawl |
| Type | WSIFT9A |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 82.5mm |
| Bundle ∅ | 9.5-82.5mm |
| Bundle ∅ min. | 9.5mm |
| Disc ∅ | 21.6mm |
| Height (H) | 19.10mm |
| Height (H2) | 9.0mm |
| Length (L) | 387.0mm |
| Min.Tensile Strength | 535N |
| Panel Thickness max. | 1.0 - 6.5mm |
| Width (W) | 7.6mm |
| Width (W2) | 13.0mm |
| for Hole ∅ (FH) | 8.7 - 9.2 mm |
| for Panel Thickness min - max | 1 - 6.5 mm |
| for Panel Thickness min - max | 0 - 0.3 " |
| ∅ D min. | 21.6mm |
| ∅ D min. (imperial) | 0.85" |
