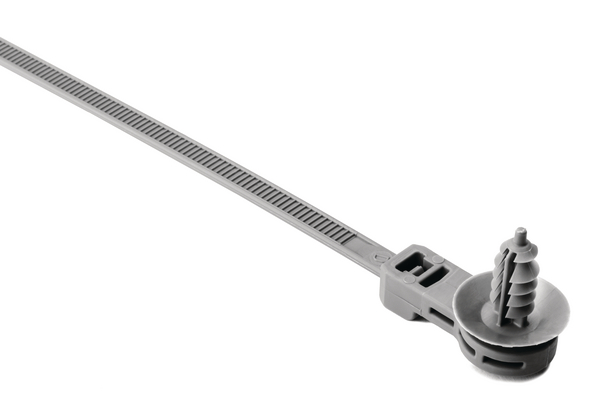

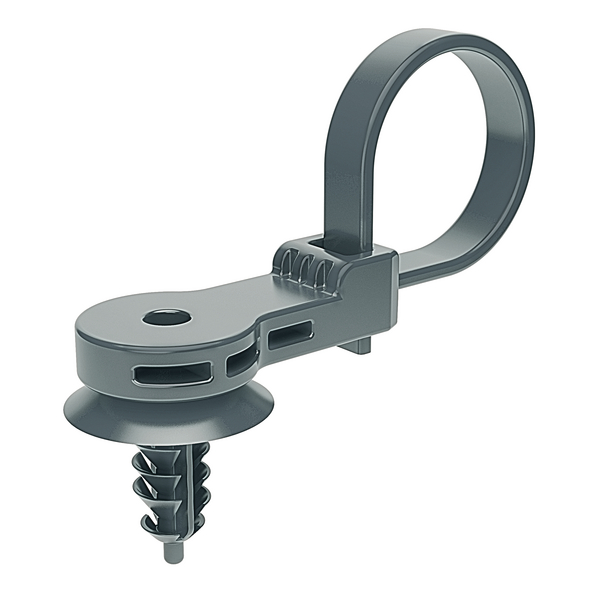

Fixing tie for hole (round), ∅2.0-50.0mm, grey, 3000pcs.
Art.-No. 157-00507 | T50ROSFTM6SO12.5A-PA66HIRHS-GY |  Details

The fir tree mount cable tie is an all-in-one bundling and fastening solution that reduces costs and assembly time.

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSFTM6SO12.5A-PA66HIRHS-GY
    Pack Cont. 3000pcs.
    Package Content packed in Carton
    Product Family With offset 12.5 and 25.0 mm
    Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes
    Type T50ROSFTM6SO12.5A
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 15.0mm
    Height (H) 21.40mm
    Length (L) 215.5mm
    Length (L2) 12.5mm
    Min.Tensile Strength 222.4N
    Offset Length 12.5mm
    Panel Thickness max. 0.6 - 5.5mm
    Weight/Unit 0.002328kg
    Width (W) 5.1mm
    for Hole ∅ (FH) M6
    for Panel Thickness min - max 0.6 - 5.5 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026657615
    Packaging 1 - Qty 3000
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 6.984001kg
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 7.804001kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 114.648kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
