Fixing tie for hole (round), inside serrated, ∅1.5-31.0mm, black, 500pcs.
Art.-No. 157-01100 | T50SDP6-PA66HIRHS-BK |  Details

Ideal for use in deep panels and threaded, blind holes.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has resulted in these parts being used in many other industries, for example: aviation, switch-gear manufacture and white goods.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Local order number T50SDP6.HB6P
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SDP6-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No

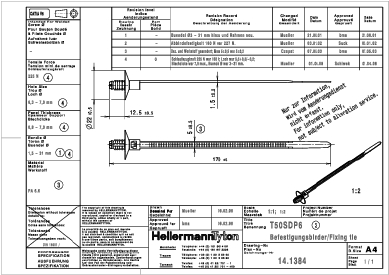

    Short Description 1-Piece fixing tie 170x5.1 mm, with fir tree, with Disc, for round holes, high impact modified, heat stabilised, black
    Tie Closure plastic pawl
    Type T50SDP6
    Variant Inside Serrated
    Bundle Diameter max (metric) 31.0mm
    Bundle ∅ 1.5-31.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 22.0mm
    Length (L) 170mm
    Min.Tensile Strength 225N
    Weight/Unit 0.0017kg
    Width (W) 5.1mm
    for Hole ∅ (FH) 6.3 - 7.1 mm
    for Panel Thickness min - max 0.8 - 7 mm
    for Panel Thickness min - max 0 - 0.3 "
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660326493
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.42m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01433m³
    Packaging 1 - Weight (kg) 0.850001kg
    Packaging 1 - Width (m) 0.325m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 6.061006kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 93.732kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
