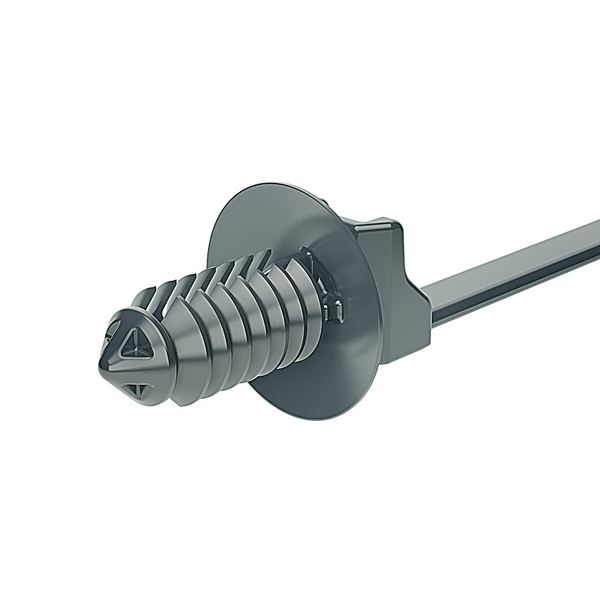

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, grey, 5000pcs.
Art.-No. 157-00152 | T50SOSFT6LG-E2-PA66HS-GY Details

This product is not available anymore.
  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Colour Grey (GY)
Fixation Method Fir Tree
Identification Plate Position none
Key product features products for automatic tools
Local order number 157-00152
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SOSFT6LG-E2-PA66HS-GY
Pack Cont. 5000pcs.
Package Content packed in Box
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SOSFT6LG-E2
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm
Fixing Hole Shape Circular
Length (L) 167.0mm
Length of Fir Tree 15.2mm
Min.Tensile Strength 180N
Panel Thickness max. 0.6 - 8.3mm
Thickness (T) 1.3mm
Weight/Unit 0.000426kg
Width (W) 4.6mm
for Hole ∅ (FH) 6.1 - 6.9 mm
for Panel Thickness min - max 0.6 - 8.3 mm
for Panel Thickness min - max 0 - 0.3 "
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026459011
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 0.426kg
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Weight (kg) 2.524kg
Packaging 3 - Width (m) 0.2921m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 51.288kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
