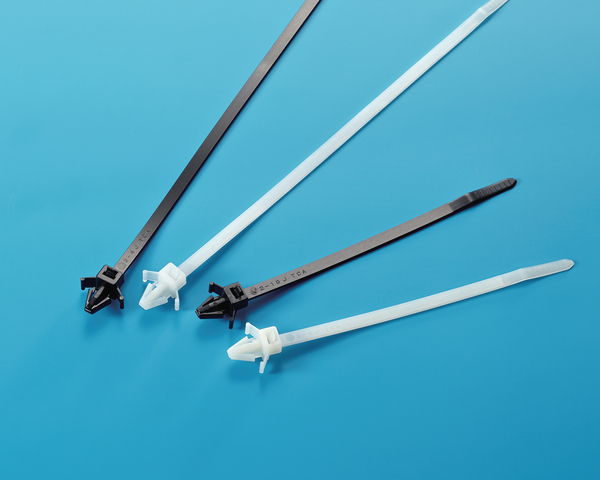

Fixing tie for hole (round), inside serrated, ∅1.5-26.0mm, black, 100pcs.
Art.-No. 126-00056 | T50SSF-PA66W-BK |  Details

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Local order number T50SSF-W
    Material Polyamide 6.6, UV-resistant (PA66W)
    PART DESCRIPTION T50SSF-PA66W-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SSF
    Variant Inside Serrated
    Bundle Diameter max (metric) 26.0mm
    Bundle ∅ 1.5-26.0mm
    Bundle ∅ min. 1.5mm
    Height (H2) 9.2mm
    Length (L) 130.0mm
    Length (L2) 18.40mm
    Min.Tensile Strength 222.5N
    Panel Thickness max. 0.7 – 2.6mm
    Thickness (T) 1.3mm
    Width (W) 4.8mm
    Width (W2) 9.4mm
    Width (W3) 18.0mm
    for Hole ∅ (FH) 6.0 - 7.5 mm
    for Panel Thickness min - max 0.7 - 2.6 mm
    for Panel Thickness min - max 0 - 0.1 "
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4944387928297
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
