22/12/2024

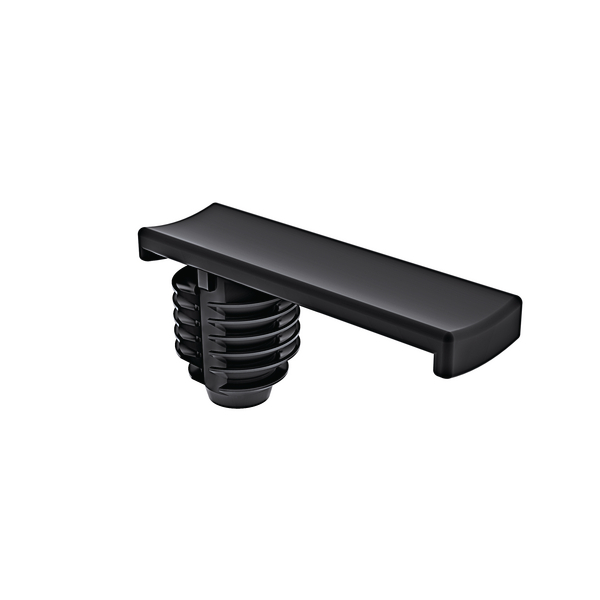

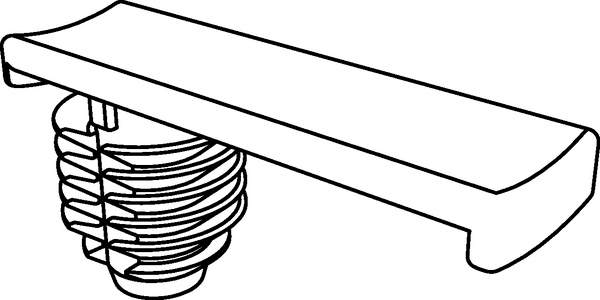

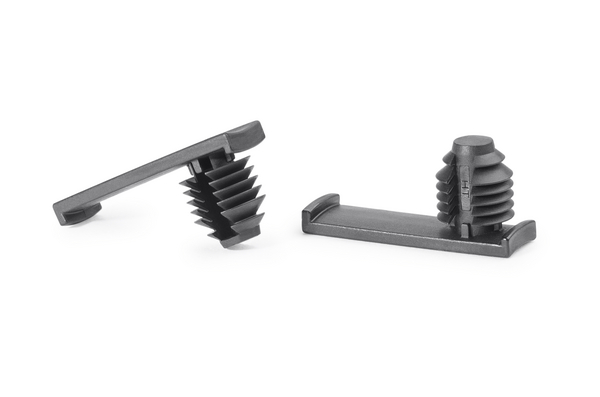

Bundling clip for hole (round), L=27.3mm, black, 20000pcs.
Art.-No. 151-01879 | BCOWFT8-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Local order number BCOWFT8_PA66HIRHS_BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCOWFT8-PA66HIRHS-BK
    Pack Cont. 20000pcs.
    Package Content packed in Bag
    Product Family Round holes
    Product Group Bundling Clips with Fir Tree
    Short Description Bundling Clip, round hole M10, 8.0 - 8.5 mm, fir tree, high impact modified, heat stabilised, black
    Type BCOWFT8
    Bundling Bar Length 27.3mm
    Height (H) 12.75mm
    Length (L) 27.3mm
    Panel Thickness max. 0.6 - 4.0mm
    Weight/Unit 0.000674kg
    Width (W) 8.0mm
    for Hole ∅ (FH) M10, 8.0 - 8.5 mm
    for Panel Thickness min - max 0.6 - 4 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026576602
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 5000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 3.413597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 15000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 10.890791kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 300000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 238.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Show all
