19/11/2024

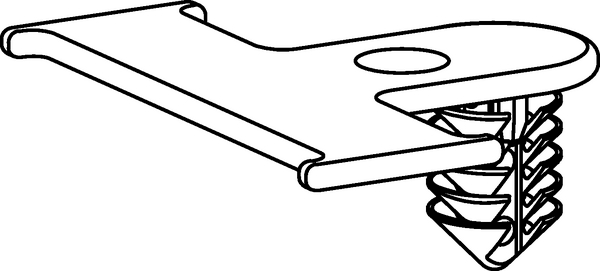

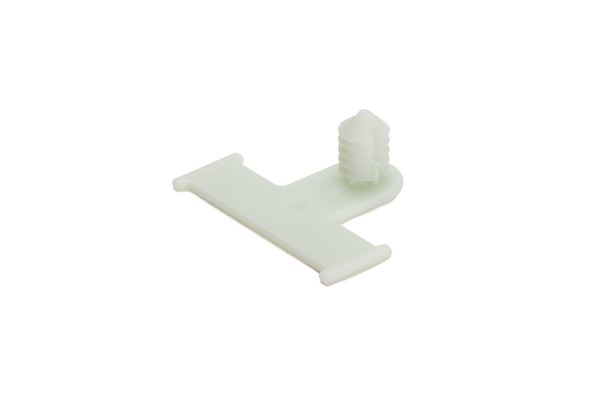

Bundling clip for hole (round), L=35.5mm, SO=20.3mm, natural, 4000pcs.
Art.-No. 151-01153 | SOC9FT6-PA66HIRHS-NA |  Details

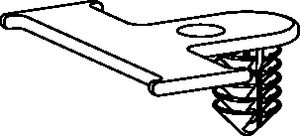

The bundle fastens to the tape bar using tape or cable ties.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Natural (NA)
    Fixation Method Fir Tree
    Local order number 151-01153
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC9FT6-PA66HIRHS-NA
    Pack Cont. 4000pcs.
    Package Content packed in Carton
    Product Family Round holes
    Product Group Bundling Clips with Fir Tree for Distance Routing
    Type SOC9FT6
    Bundling Bar Length 35.5mm
    Height (H) 11.94mm
    Length (L) 35.5mm
    Length (L2) 15.75mm
    Offset Length 20.3mm
    Panel Thickness max. 0.5 - 6.1mm
    Weight/Unit 0.01kg
    Width (W) 27.95mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.5 - 6.1 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026463322
    Packaging 3 - Height (m) 0.142875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 4000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0229m³
    Packaging 3 - Weight (kg) 40.52kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Height (m) 1.145m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 112000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.099m³
    Packaging 4 - Weight (kg) 1155.56kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
