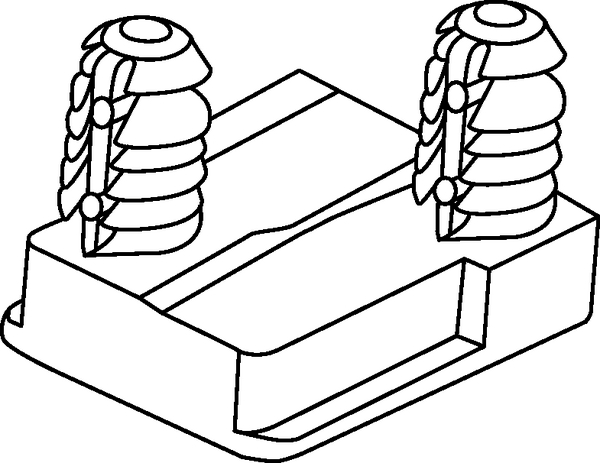

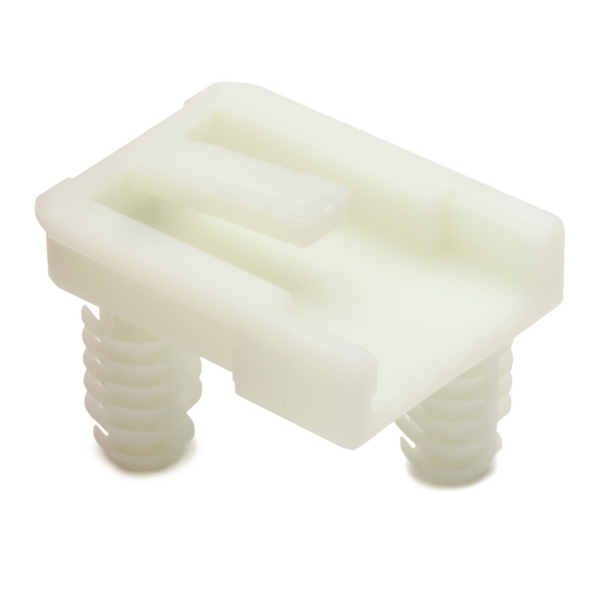

Connector clip, EWCAP-005-23, natural, 5000pcs.
Art.-No. 151-00677 | CC08-PA66HIRHS-NA |  Details

Connector clip with fir tree includes clamping rails to provide full circumferential compression around bundles.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Natural (NA)
    Fixation Method Fir tree for round holes
    Local order number 151-00677
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC08-PA66HIRHS-NA
    Pack Cont. 5000pcs.
    Package Content packed in Carton
    Product Family With Fir Tree
    Product Group Connector Clips for round holes
    Type CC08
    Height (H) 20.55mm
    Length (L) 25.2mm
    Panel Thickness max. 0.7 - 5.75mm
    Weight/Unit 0.002053kg
    Width (W) 19.81mm
    for Hole ∅ (FH) 6.25 - 6.75 mm
    for Panel Thickness min - max 0.7 - 5.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026338217
    Packaging 1 - Height (m) 0.19m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 5000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.04503m³
    Packaging 1 - Weight (kg) 10.265001kg
    Packaging 1 - Width (m) 0.395m
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 11.035001kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 186.525kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
