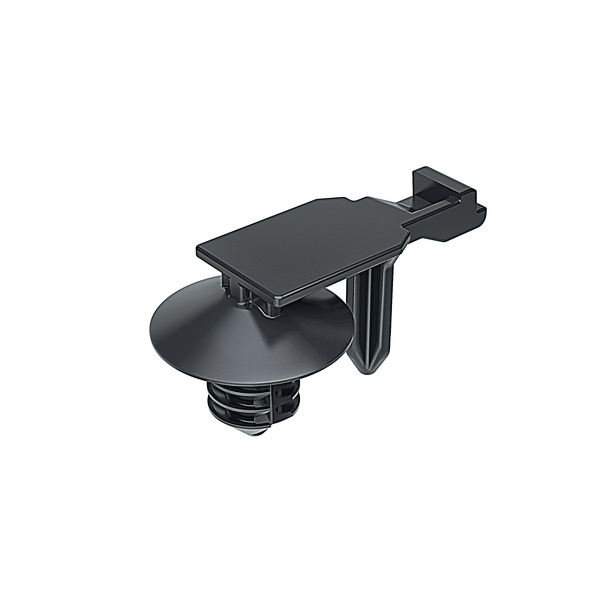

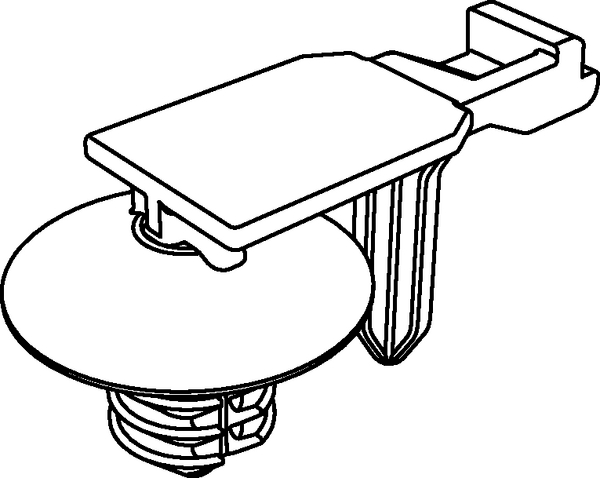

Connector clip for hole (round), EWCAP-005-11, black, 15000pcs.
Art.-No. 151-00965 | YCCFT6LGTS2-PA66HIRHS-BK |  Details

ConnectorClips are available for many different connector types and fixing varieties.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Local order number YCCFT6LGTS2_PA66HIRHS_H1
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION YCCFT6LGTS2-PA66HIRHS-BK
    Pack Cont. 15000pcs.
    Package Content packed in Bag
    Product Family With Fir Tree
    Product Group Connector Clips for round holes
    Type YCCFT6LGTS2
    Disc ∅ 16mm
    Height (H) 16.75mm
    Length (L) 31.25mm
    Weight/Unit 0.000822kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.7 - 5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026442624
    Packaging 1 - Qty 15000
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 12.396663kg
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.216663kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 179.604kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
