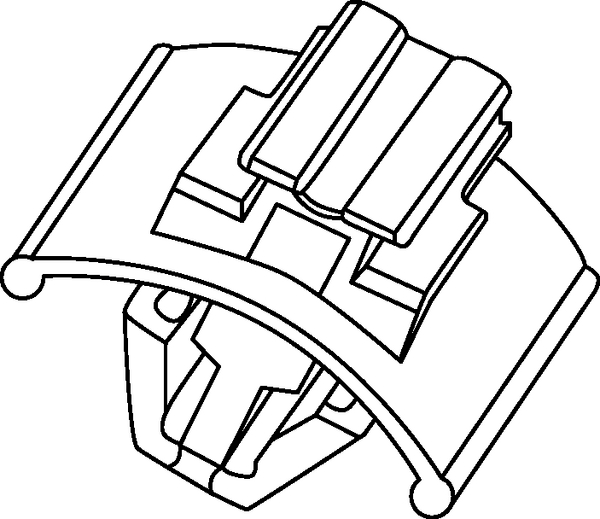

Connector clip for hole (oval), black, 500pcs.
Art.-No. 151-01004 | CCSFT8.5X16-PA66HIRHS-BK | Details

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

Connector Clips for Oval Holes >

Base Data

Colour	Black (BK)
Local order number	CCSFT8.5X16
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CCSFT8.5X16-PA66HIRHS-BK
Pack Cont.	500pcs.
Package Content packed in	Bag
Product Family	With Arrowhead
Product Group	Connector Clips for Oval Holes
Type	CCSFT8.5X16

Product Dimensions

Height (H)	15.0mm
Length (L)	19.5mm
Panel Thickness max.	0.7 - 1.5mm
Width (W)	18.5mm
for Hole ∅ (FH)	8.5 x 16.0 mm
for Panel Thickness min - max	0.7 - 1.5 mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026450438

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
