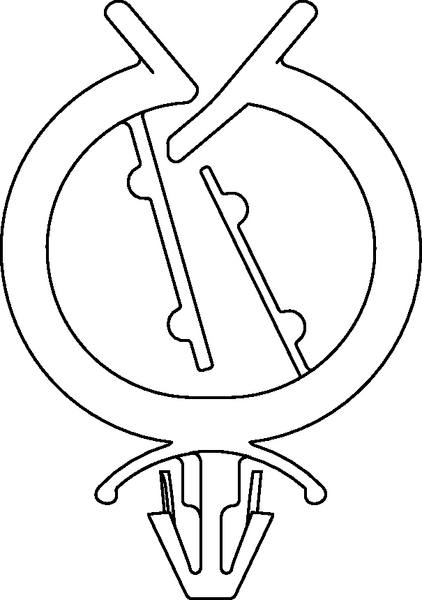

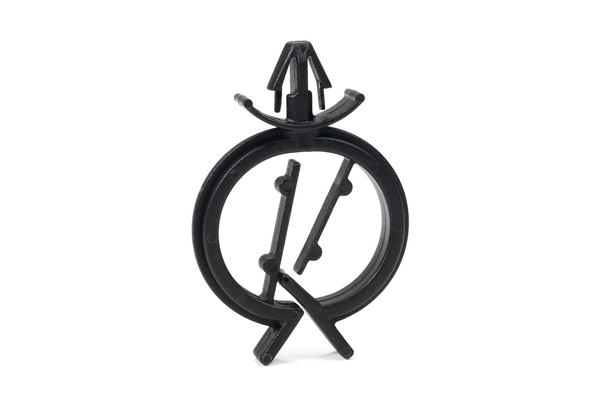

Cable clip for hole (round), T=0.7 - 2.6mm, ∅4.7 - 5.2 mm, Dmax=12.0mm
Art.-No. 151-02204 | MWC12-PA66-BK | Details

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

Fixing Elements for Tubes and Harnesses >

Base Data

Colour	Black (BK)
Key product features	lockable
Local order number	MWC12/PA66/BK/5000
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	MWC12-PA66-BK
Pack Cont.	1000pcs.
Package Content packed in	Bag
Product Family	With Arrowhead
Product Group	Fixing Elements for Tubes and Harnesses
Type	MWC12

Product Dimensions

Bundle Diameter max (metric)	12.0mm
Bundle ∅	12.0mm
Height (H)	36.5mm
Length (L)	25.6mm
Panel Thickness max.	0.7 - 2.6mm
Width (W)	5.5mm
for Hole ∅ (FH)	4.7 - 5.2 mm
for Panel Thickness min - max	0.7 - 2.6 mm

Downloads

Specifications

Operating Temperature

-40 °C to +85 °C, (+105 °C, 500 h)

Logistics and Packaging

Country of Origin	KR
GTIN-13 / EAN	4031026711355

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
