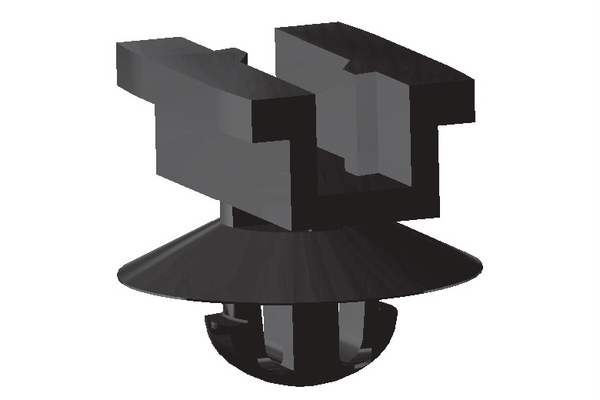

Connector clip for hole (oval), black, 10000pcs.
Art.-No. 151-00840 | CC-PAEKSFT6.5PT1.7-2.3-PA66HIRHS-BK |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Local order number CC-PAEKSFT6.5PT1.7-2.3_PA66HIRHS_N1
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC-PAEKSFT6.5PT1.7-2.3-PA66HIRHS-BK
    Pack Cont. 10000pcs.
    Package Content packed in Bag
    Product Family With Arrowhead
    Product Group Connector Clip PA66HIRHS CC-PAEKSFT6.5PT
    Short Description Connector Clip, high impact modified, heat stabilised, black
    Type CC-PAEKSFT6.5PT1.7-2.3
    Height (H) 13.4mm
    Length (L) 16.0mm
    Weight/Unit 0.00077kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 1.7 - 2.3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026411354
    Packaging 1 - Height (m) 0.184m
    Packaging 1 - Length (m) 0.58m
    Packaging 1 - Qty 10000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.04055m³
    Packaging 1 - Weight (kg) 7.766663kg
    Packaging 1 - Width (m) 0.38m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 8.366663kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 240000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 221.808kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
