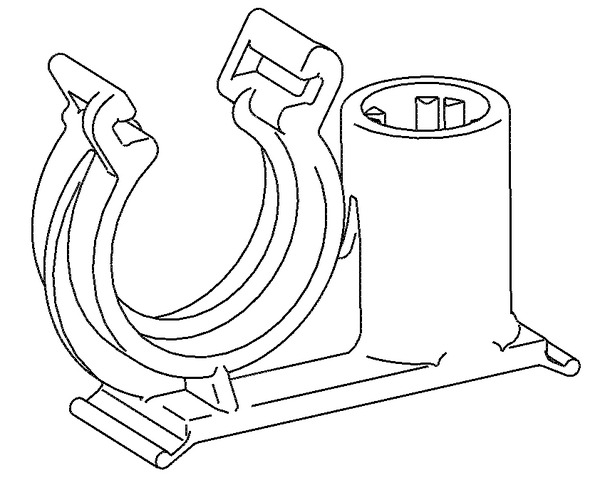

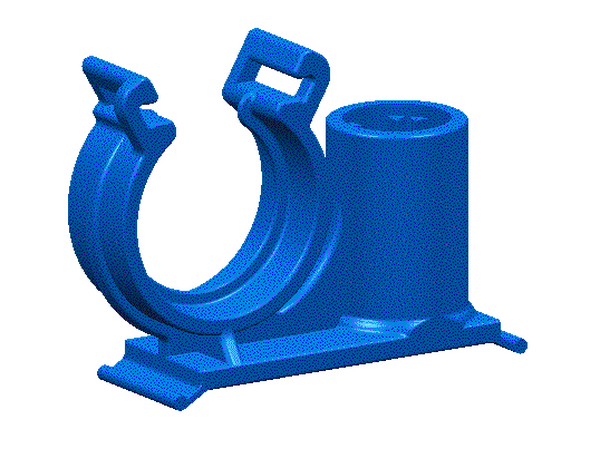

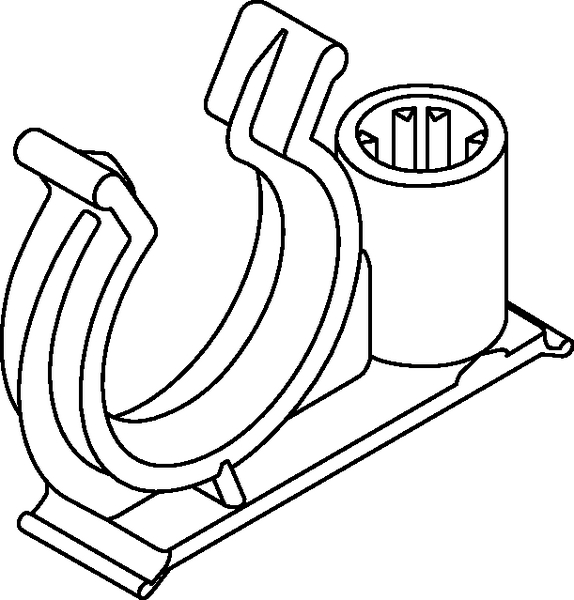

Corrugated tube clip for stud, nom∅13.0mm, black, 500pcs.
Art.-No. 151-00703
| CTC13SBS6-PA66HIRHS-BK
|
Details
- Fixing elements for corrugated tubing for nominal diameters from 4.5 - 17.0 mm
- For M6 weld studs
- Soft-Push mechanic for simple assembly, without tool
- Tube is guided accurately by clicking
- Axial slipping is prevented by the inside profile of the clamp
- Clamp can be unscrewed and removed from the weld stud
Request your individual offer now
Request quote
More products in this product group:
| Application | These holders are used in the automotive industry, in the production of cable harnesses and in the electrical industry. Their quick and easy mounting is the reason for their universal success wherever corrugated tubing and pipes have to be fixed quickly and securely. |
| Colour | Black (BK) |
| Conduit ∅ | IWS 10-17 |
| Fixation Method | Weld Stud Fixing |
| Key product features | for convoluted tubes or with rib |
| Local order number | WRH13SBS6.MC3-D1 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CTC13SBS6-PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | CTC-Series |
| Product Group | Fixing elements for corrugated tubing, for weld studs |

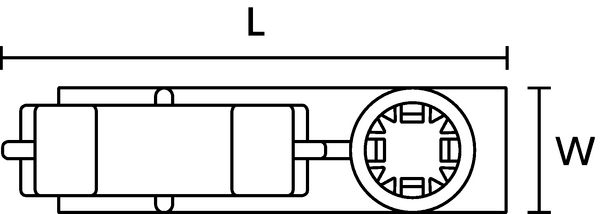

| Short Description | Fixing Element 37x11 mm, for Weld Studs, heat stabilised, high impact modified, black |
| Type | CTC13SBS6 |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026231761 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 1.153478kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 12.35478kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 169.2kg |
| Packaging 4 - Width (m) | 0.8m |
