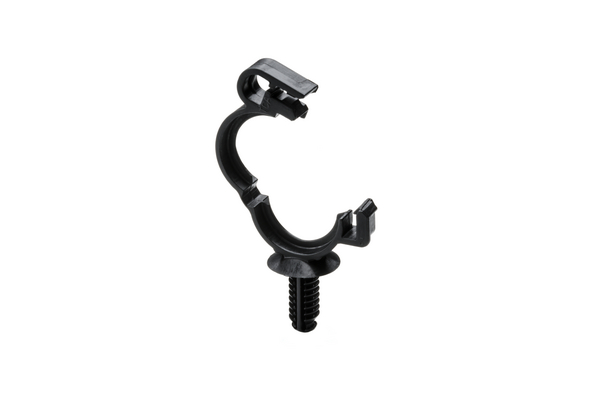

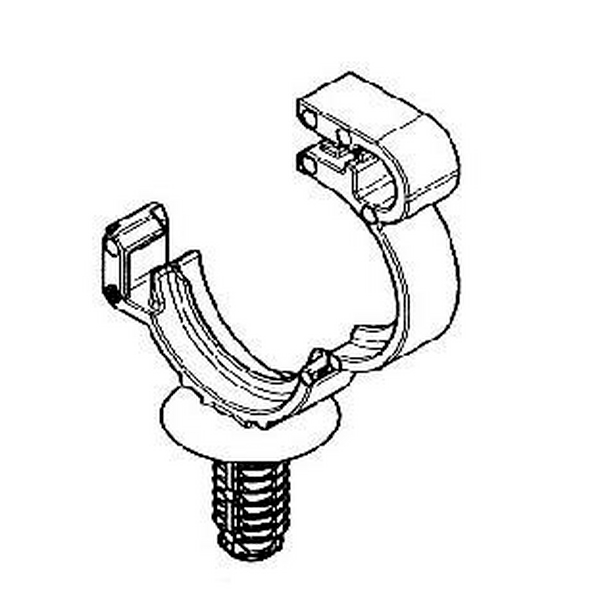

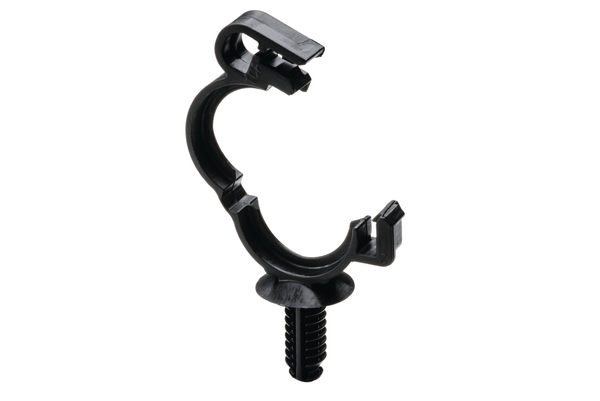

Corrugated tube clip for hole (round), nom∅16.0mm, black, 1500pcs.
Art.-No. 151-00621 | CTCL16FT6LG-PA66HIRHSUV-BK |  Details

Convoluted tubing clip features a staggered fir tree branch design to provide low insertion forces and high extraction forces.

    • CTC clamps for a variety of nominal diameters
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib, reusable, removable, lockable
    Local order number CTCL16FT6LG
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CTCL16FT6LG-PA66HIRHSUV-BK
    Pack Cont. 1500pcs.
    Package Content packed in Box
    Product Family CTC-Series
    Product Group Fixing elements for corrugated tubing, with fir tree
    Short Description Convoluted Tubing Clip, round holes 6.3 - 7.0 mm, fir tree, high impact modified, heat and UV-stabilised, black
    Type CTCL16FT6LG
    Variant Clips
    Attach to Ø NW16
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ 16.0mm

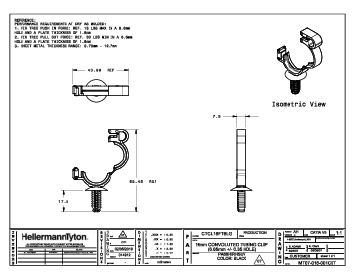

    Height (H) 47.96mm
    Height (H2) 17.5mm
    Nominal ∅ 16.0mm
    Nominal ∅ (imperial) 0.63"
    Panel Thickness max. 0.7 - 12.7mm
    Width (W) 43.9mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.7 - 12.7 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026711140
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 4.85kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121717
