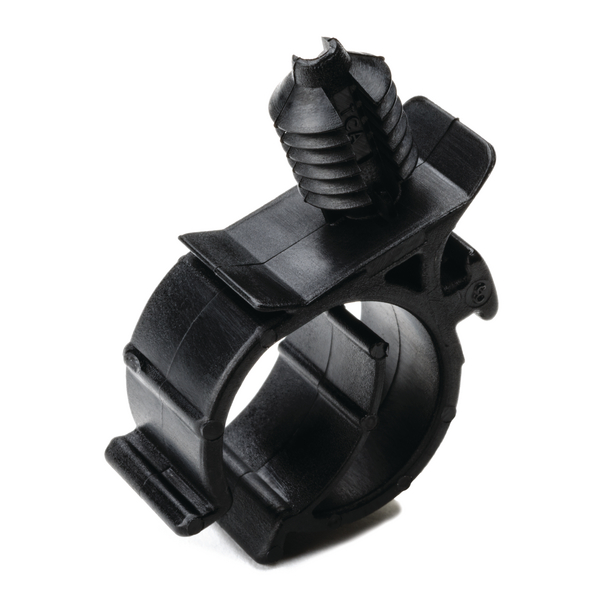

Corrugated tube clip for hole (round), nom∅15.0mm, black, 5000pcs.
Art.-No. 151-00783
| CTCFT6-PA66HIRHS-BK
|
Details
- CTC clamps for a variety of nominal diameters
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Tube is guided accurately by clicking
- Axial slipping is prevented by the inside profile of the clamp
Request your individual offer now
Request quote
More products in this product group:
| Application | CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed. |
| Cable ∅ max | 15mm |
| Cable ∅ min | 11mm |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | for convoluted tubes or with rib, reusable, removable |
| Local order number | CTCFT6 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CTCFT6-PA66HIRHS-BK |
| Pack Cont. | 5000pcs. |
| Package Content packed in | Carton |
| Product Family | CTC-Series |
| Product Group | Fixing elements for corrugated tubing, with fir tree |
| Short Description | Fixing Elements with Fir Tree for Corrugated Tubing black |
| Type | CTCFT6 |
| Variant | Clips |
| Attach to Ø | 15 |
| Bundle Diameter max (metric) | 15.0mm |
| Bundle ∅ | 11.0-15.0mm |
| Bundle ∅ min. | 11.0mm |
| Height (H) | 18.5mm |
| Height (H2) | 9.3mm |
| Length (L) | 11.0mm |
| Nominal ∅ | 15.0mm |
| Nominal ∅ (imperial) | 1.56" |
| Panel Thickness max. | 0.7 - 4.5mm |
| Weight/Unit | 0.001765kg |
| Width (W) | 11.0mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.7 - 4.5 mm |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026325897 |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 9.475kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 210.5kg |
| Packaging 4 - Width (m) | 0.8m |
