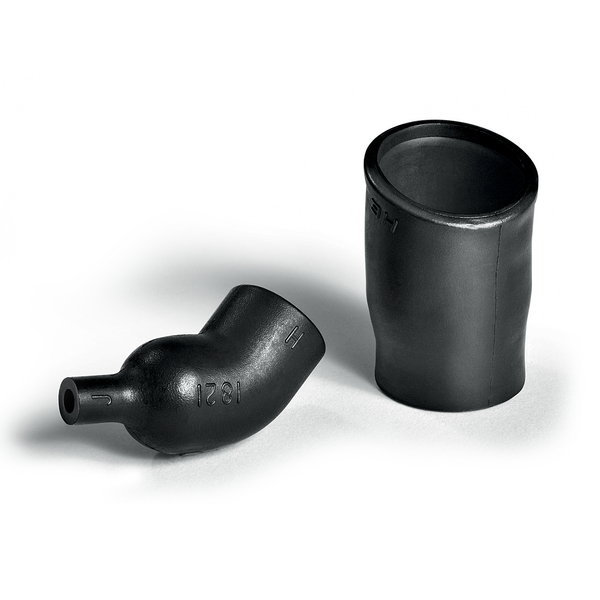

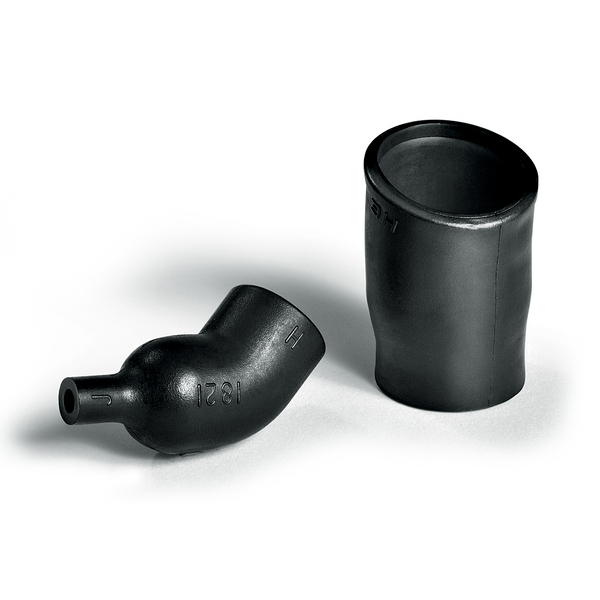

Angle Shapes
Art.-No. 418-31000 | 1831-2-L-FPMX-BK Details

  • Provides strain relief and mechanical protection for harness systems
  • Use in conjunction with a circular grooved adaptor

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 1831-2-L
Material Fluoropolymer, cross-linked (FPMX)
PART DESCRIPTION 1831-2-L-FPMX-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Product Group Angle Shapes
Type 1831-2-L
Flexibility Semi rigid
HW ± 20% 2.0mm
JW ± 20% 2.0mm
P ± 10% 60mm
R nom 40mm
T ± 20% 2.0mm
V max 3.5mm
∅H max b 22.1mm
∅H min a 36mm
∅J max b 8.4mm
∅J min. a 21mm
Minimum Shrink Temperature +135 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660690204
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
