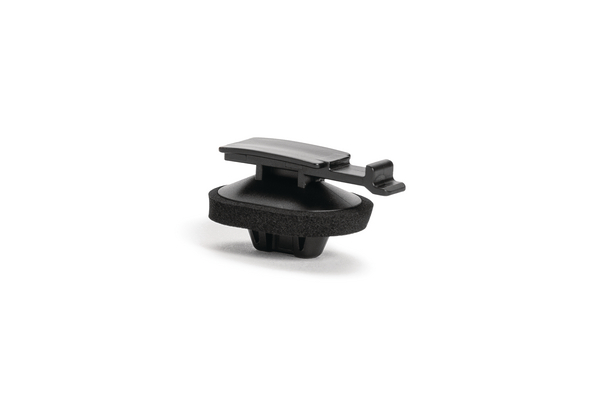

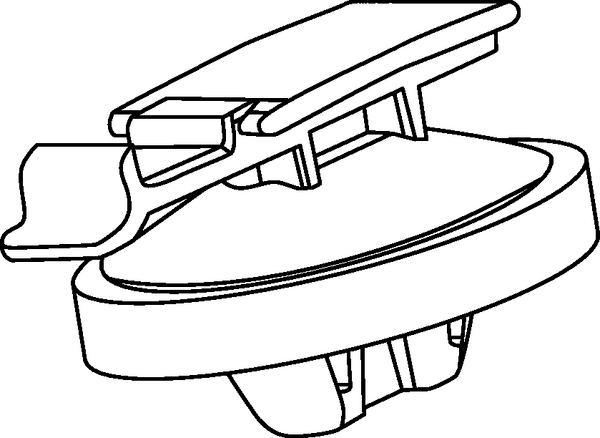

Connector clip for hole (oval), black, 5000pcs.
Art.-No. 151-01273 | YCCSFT6.5X13PT0.6-2.0-MD-PA66HIRHS/EPDM-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Local order number YCCSFT6.5X13PT0.6-2.0-MD-HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Ethylene Propylene Diene Terpolymer rubber free of Nitrosamine (EPDM)
    PART DESCRIPTION YCCSFT6.5X13PT0.6-2.0-MD-PA66HIRHS/EPDM-BK
    Pack Cont. 5000pcs.
    Package Content packed in Carton
    Product Family With Arrowhead
    Product Group Connector Clips for Oval Holes, sealed
    Type YCCSFT6.5X13PT0.6-2.0-MD
    Fixing Hole Shape Oval
    Height (H) 16.0mm
    Length (L) 29.5mm
    Panel Thickness max. 0.6 - 2.0mm
    Weight/Unit 0.001356kg
    Width (W) 19.0mm
    for Hole ∅ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 0.6 - 2 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026482811
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00431m³
    Packaging 1 - Weight (kg) 0.678001kg
    Packaging 1 - Width (m) 0.205m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 7.60001kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 173.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
