22/12/2024

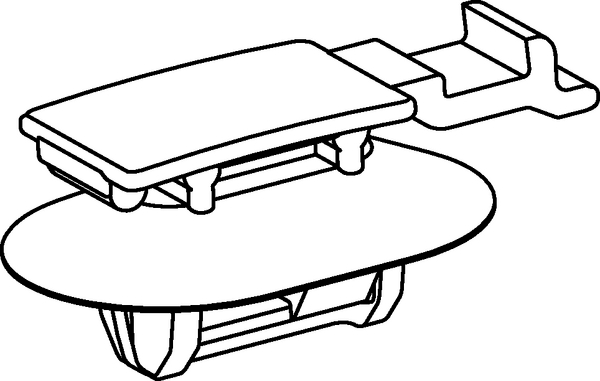

Connector clip for hole (oval), black, 1000pcs.
Art.-No. 151-01669 | YCCKSFT75X150-PA66HIR-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Connector Clip
    Local order number Connector Clips/PA66HIR/BK/500
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION YCCKSFT75X150-PA66HIR-BK
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Family With Arrowhead
    Product Group Connector Clips for Oval Holes
    Type YCCKSFT75X150
    Height (H) 12.7mm
    Length (L) 27mm
    Panel Thickness max. 0.7 - 1.7mm
    Width (W) 16.0mm
    for Hole ∅ (FH) 7.5 x 15.0 mm
    for Panel Thickness min - max 0.7 - 1.7 mm
    Operating Temperature -40 °C to +80 °C, (+105 °C, 500 h)
    Country of Origin KR
    GTIN-13 / EAN 4031026566757
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Show all
