22/12/2024

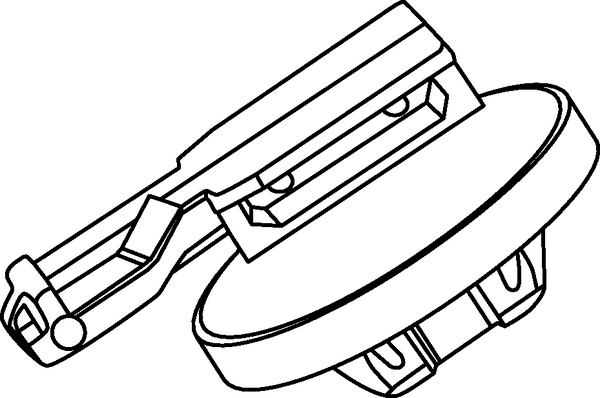

Connector clip for hole (oval), black, 500pcs.
Art.-No. 151-01312 | CCSFT6.5X12.5-MD-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Local order number CCSFT6.5X12.5-MD-HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCSFT6.5X12.5-MD-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family With Arrowhead
    Product Group Connector Clips for Oval Holes, sealed
    Type CCSFT6.5X12.5-MD
    Height (H) 16.0mm
    Length (L) 32.0mm
    Panel Thickness max. 0.6 - 1.5mm
    Weight/Unit 0.001391kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.5 x 12.5 mm
    for Panel Thickness min - max 0.6 - 1.5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026511030
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.4m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0056m³
    Packaging 1 - Weight (kg) 0.695501kg
    Packaging 1 - Width (m) 0.28m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 4000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 6.384008kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 148.68kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
